Products List
Photo Interrupter
TotalItems
| Photo | Model | Slot width | Slit | Output form | Remark | |
|---|---|---|---|---|---|---|
|
KI1138
|
5mm | 0.5mm | High (PIC w/o Shutter) | Visible light cut, 2 Beams, LED limiting resistor, Pull-up resistor, Secure Locking, Dustproof | |
|
KI1215
|
13mm | 2mm | Low (PIC w/o Shutter) | LED limiting resistor, Pull-up resistor, Wide | |
|
|
KI1216
|
13mm | 2mm | High (PIC w/o Shutter) | LED limiting resistor, Pull-up resistor, Wide | |
|
KI1220
|
13mm | 2mm | Ptr | Visible light cut, Wide | |
|
KI1221
|
4mm | 0.5mm | Ptr | Small | |
|
KI1222
|
10mm | 1mm | Ptr | Visible light cut, Wide | |
|
KI1223
|
15mm | 2mm | Ptr | Wide | |
|
KI1230
|
10mm | 1mm | Low (PIC w/o Shutter) | Pull-up resistor, Wide | |
|
|
KI1231
|
10mm | 1mm | High (PIC w/o Shutter) | Pull-up resistor, Wide | |
|
KI1232
|
5mm | 0.5mm | Ptr | Visible light cut, LED limiting resistor, Open collector, Small, Dustproof | |
|
KI1233
|
5mm | 0.5mm | High (PIC w/o Shutter) | LED limiting resistor, Open collector, Small, Dustproof | |
|
|
KI1234
|
5mm | 0.5mm | Low (PIC w/o Shutter) | LED limiting resistor, Open collector, Small, Dustproof | |
|
|
KI1235
|
5mm | 0.5mm | High (PIC w/o Shutter) | LED limiting resistor, Pull-up resistor, Small, Dustproof | |
|
|
KI1236
|
5mm | 0.5mm | Low (PIC w/o Shutter) | LED limiting resistor, Pull-up resistor, Small, Dustproof | |
|
KI1248
|
15mm | 2mm | Low (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Pull-up resistor, Wide, Dustproof | |
|
|
KI1249
|
15mm | 2mm | High (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Pull-up resistor, Wide, Dustproof | |
|
|
KI1250
|
15mm | 2mm | Low (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Open collector, Wide, Dustproof | |
|
|
KI1251
|
15mm | 2mm | High (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Open collector, Wide, Dustproof | |
|
KI1285
|
5mm | 0.5mm | High (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Open collector, Small, Dustproof | |
|
|
KI1286
|
5mm | 0.5mm | Low (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Open collector, Small, Dustproof | |
|
KI1300
|
8mm | 0.8mm | High (PIC w/o Shutter) | LED limiting resistor, Pull-up resistor, Wide | |
|
|
KI1301
|
8mm | 0.8mm | Low (PIC w/o Shutter) | LED limiting resistor, Pull-up resistor, Wide | |
|
|
KI1302
|
8mm | 0.8mm | High (PIC w/o Shutter) | LED limiting resistor, Open collector, Wide | |
|
|
KI1303
|
8mm | 0.8mm | Low (PIC w/o Shutter) | LED limiting resistor, Open collector, Wide | |
|
KI1305
|
8mm | 0.8mm | High (PIC w/o Shutter) | LED limiting resistor, Open collector, Wide | |
|
|
KI1306
|
8mm | 0.8mm | Low (PIC w/o Shutter) | LED limiting resistor, Open collector, Wide | |
|
KI1309
|
8mm | 0.8mm | Ptr | Wide | |
|
KI1310
|
8mm | 0.8mm | Low (PIC w/o Shutter) | Pull-up resistor, Wide | |
|
|
KI1311
|
8mm | 0.8mm | High (PIC w/o Shutter) | Pull-up resistor, Wide | |
|
KI1314
|
8mm | 0.8mm | Ptr | Wide | |
|
KI1315
|
5mm | 0.5mm | Low (PIC w/o Shutter) | Open collector, Dustproof | |
|
KI1319
|
5mm | 0.5mm | Ptr | Open collector, Dustproof | |
|
KI1320
|
5mm | 0.5mm | Low (PIC w/o Shutter) | Open collector, Dustproof | |
|
KI1324
|
5mm | 0.5mm | Ptr | Open collector, Dustproof | |
|
KI1390
|
6mm | 0.5mm | High (PIC w/o Shutter) | LED limiting resistor, Open collector, Small | |
|
|
KI1391
|
6mm | 0.5mm | Low (PIC w/o Shutter) | LED limiting resistor, Open collector, Small | |
|
KI1400
|
5mm | 0.5mm | High (PIC w/o Shutter) | 4 Directions, LED limiting resistor, Open collector | |
|
|
KI1401
|
5mm | 0.5mm | Low (PIC w/o Shutter) | 4 Directions, LED limiting resistor, Open collector | |
|
KI1470
|
3mm | 0.5mm | Ptr | Small | |
|
KI1600
|
5mm | 0.5mm | High (PIC w/o Shutter) | Visible light cut, 4 Directions, LED limiting resistor, Open collector, Dustproof | |
|
|
KI1601
|
5mm | 0.5mm | Low (PIC w/o Shutter) | Visible light cut, 4 Directions, LED limiting resistor, Open collector, Dustproof | |
|
KI3024
|
5mm | 0.5mm | Ptr | Visible light cut, Dustproof | |
|

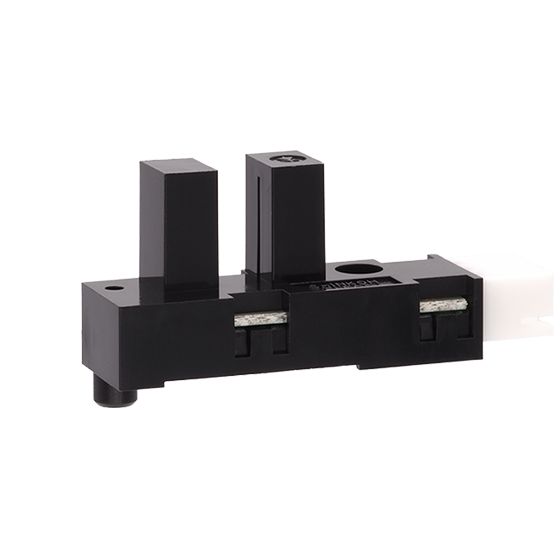

KI3050
|
5mm | 0.5mm | High (PIC w/o Shutter) | LED limiting resistor, Open collector | |
|
|
KI3051
|
5mm | 0.5mm | Low (PIC w/o Shutter) | LED limiting resistor, Open collector | |
|
|
KI3052
|
5mm | 0.5mm | High (PIC w/o Shutter) | LED limiting resistor, Pull-up resistor | |
|
|
KI3053
|
5mm | 0.5mm | Low (PIC w/o Shutter) | LED limiting resistor, Pull-up resistor | |
|
KI3060
|
10mm | 2mm | High (PIC w/o Shutter) | Wide | |
|
|
KI3061
|
10mm | 2mm | Low (PIC w/o Shutter) | Wide | |
|
KI3064
|
10mm | 2mm | Ptr | Visible light cut, Wide | |
|
KI3110
|
5mm | 0.25mm | High (PIC w/o Shutter) | Visible light cut | |
|
|

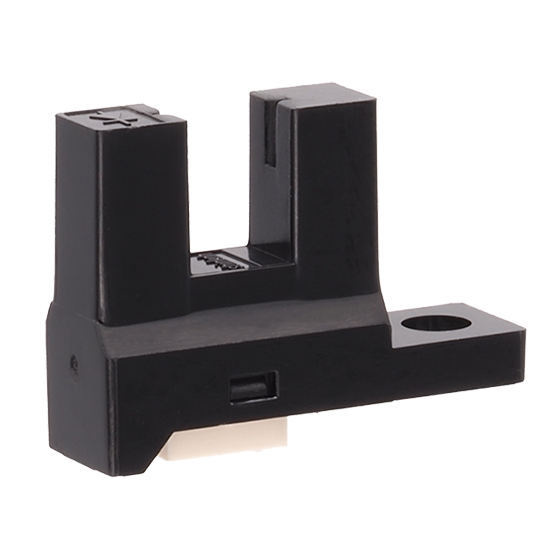

KI3111
|
5mm | 0.25mm | Low (PIC w/o Shutter) | Visible light cut | |
|
KI3300
|
8mm | 0.5mm | High (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Open collector, Dustproof | |
|
|
KI3301
|
8mm | 0.5mm | Low (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Open collector, Dustproof | |
|

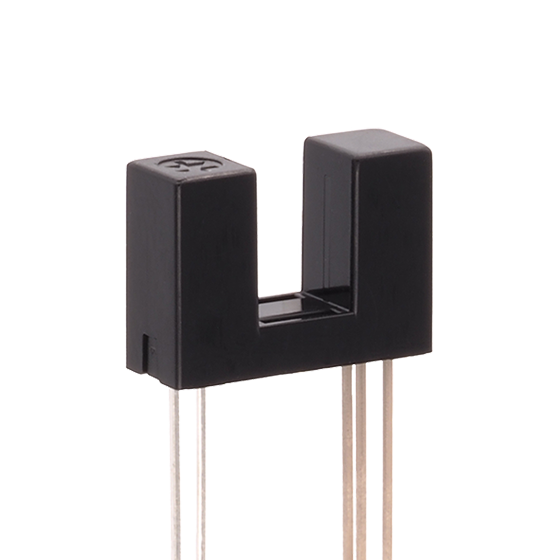

KI3520
|
5mm | 0.5mm | High (PIC w/o Shutter) | Visible light cut, Open collector, Small, Dustproof | |
|
|
KI3521
|
5mm | 0.5mm | Low (PIC w/o Shutter) | Visible light cut, Open collector, Small, Dustproof | |
|
KI3524
|
5mm | 0.5mm | Ptr | Visible light cut, Small, Dustproof | |
|
KI3534
|
5mm | 0.5mm | Ptr | Visible light cut, Small, Dustproof | |
|
KI3544
|
5mm | 0.5mm | Ptr | Visible light cut, Small, Dustproof | |
|
KI3642
|
5mm | 0.5mm | High (PIC w/o Shutter) | Pull-up resistor, Flow Soldering, Small | |
|
KI3644
|
5mm | 0.5mm | Ptr | Flow Soldering, Small | |
|
KI3652
|
5mm | 0.5mm | High (PIC w/o Shutter) | Pull-up resistor, Flow Soldering, Small | |
|
KI3654
|
5mm | 0.5mm | Ptr | Flow Soldering, Small | |
|

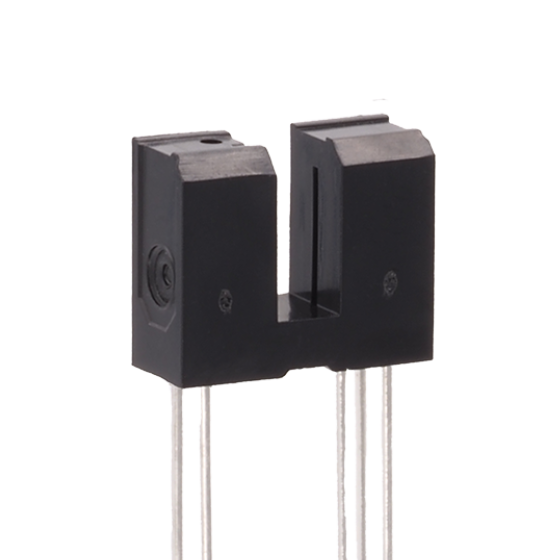

KI3662
|
3mm | 0.5mm | High (PIC w/o Shutter) | Pull-up resistor, Flow Soldering, Small | |
|
KI3663
|
3mm | 0.5mm | Low (PIC w/o Shutter) | Pull-up resistor, Flow Soldering, Small | |
|
KI3664
|
3mm | 0.5mm | Ptr | Flow Soldering, Small | |
|
KI3674
|
3mm | 0.5mm | Ptr | Flow Soldering, Small | |
|
KI3700
|
8mm | 0.5mm | Low (PIC w/o Shutter) | LED limiting resistor, Vcc=12V, Pull-up resistor, Secure Locking, Dustproof, Splash proof | |
|
|
KI3701
|
8mm | 0.5mm | High (PIC w/o Shutter) | LED limiting resistor, Vcc=12V, Pull-up resistor, Secure Locking, Dustproof, Splash proof | |
|
|
KI3710
|
8mm | 0.5mm | High (PIC w/o Shutter) | LED limiting resistor, Pull-up resistor, Secure Locking, Dustproof, Splash proof | |
|
|
KI3711
|
8mm | 0.5mm | Low (PIC w/o Shutter) | LED limiting resistor, Pull-up resistor, Secure Locking, Dustproof, Splash proof | |
|
KI3720
|
2.2mm | 0.2mm | Ptr | Small, Horizontal Slit | |
|
KI3740
|
5mm | 0.5mm | High (PIC w/o Shutter) | Open collector, Flow Soldering, Small, Horizontal Slit | |
|
|
KI3741
|
5mm | 0.5mm | Low (PIC w/o Shutter) | Open collector, Flow Soldering, Small, Horizontal Slit | |
|
KI3744
|
5mm | 0.5mm | Ptr | Flow Soldering, Small, Horizontal Slit | |
|
KI3750
|
5mm | 0.5mm | High (PIC w/o Shutter) | LED limiting resistor, Open collector, Small, Secure Locking | |
|
|
KI3751
|
5mm | 0.5mm | Low (PIC w/o Shutter) | LED limiting resistor, Open collector, Small, Secure Locking | |
|
KI3780
|
5mm | 0.5mm | High (PIC w/o Shutter) | LED limiting resistor, Open collector | |
|
|
KI3781
|
5mm | 0.5mm | Low (PIC w/o Shutter) | LED limiting resistor, Open collector | |
|
KI3890
|
4mm | 0.5mm | Ptr | Visible light cut, Small, Dustproof | |
|
KI3940
|
5mm | 0.5mm | Ptr | Visible light cut, Small, Dustproof | |
|
KI3990
|
5mm | 0.5mm | High (PIC w/o Shutter) | Open collector, Flow Soldering | |
|
|
KI3991
|
5mm | 0.5mm | Low (PIC w/o Shutter) | Open collector, Flow Soldering | |
|
KI3994
|
5mm | 0.5mm | Ptr | Flow Soldering | |
|
KI5110
|
5mm | 0.5mm | High (PIC w/o Shutter) | LED limiting resistor, Open collector | |
|
|
KI5111
|
5mm | 0.5mm | Low (PIC w/o Shutter) | LED limiting resistor, Open collector | |
|

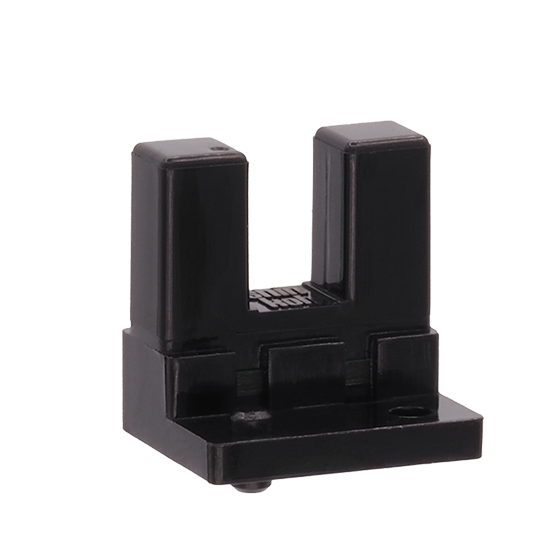

KI5140
|
4.7mm | 0.5mm | High (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Open collector, Small, Dustproof | |
|
|
KI5141
|
4.7mm | 0.5mm | Low (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Open collector, Small, Dustproof | |
|
KI5220
|
3.5mm | 0.5mm | High (PIC w/o Shutter) | Open collector, Small, Secure Locking, Dustproof | |
|
|
KI5221
|
3.5mm | 0.5mm | Low (PIC w/o Shutter) | Open collector, Small, Secure Locking, Dustproof | |
|

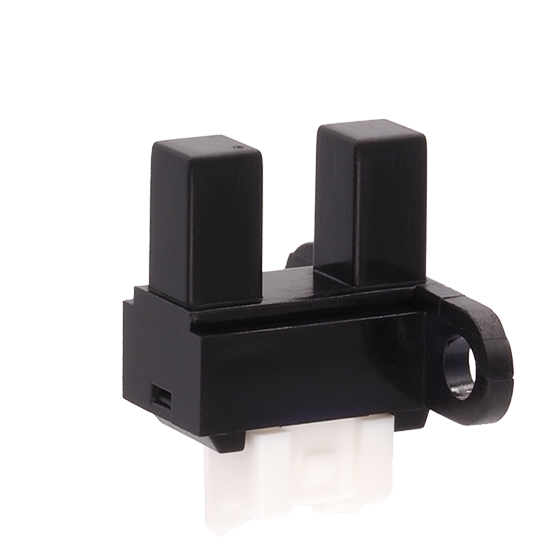

KI5230
|
5mm | 0.5mm | High (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Open collector, Secure Locking, Dustproof | |
|
|
KI5231
|
5mm | 0.5mm | Low (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Open collector, Secure Locking, Dustproof | |
|

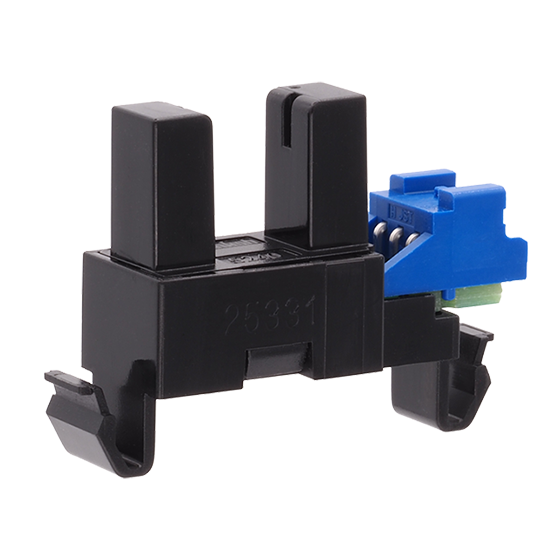

KI5240
|
7mm | 0.5mm | High (PIC w/o Shutter) | LED limiting resistor, Open collector, Secure Locking | |
|
KI5264
|
5mm | 0.5mm | Ptr | Visible light cut, Dustproof | |
|
KI5274
|
3.4mm | 0.7mm | Ptr | Visible light cut, Dustproof | |
|
KI5350
|
5mm | 0.5mm | High (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Open collector, Small, Dustproof | |
|
|

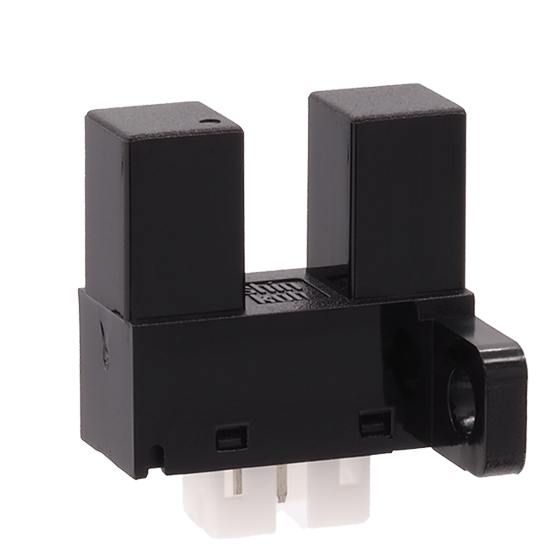

KI5351
|
5mm | 0.5mm | Low (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Open collector, Small, Dustproof | |
|
KI5354
|
5mm | 0.5mm | Ptr | Visible light cut, Small, Dustproof | |
|
KI5365
|
5mm | 0.5mm | Ptr | 5 Pins, Dustproof | |
|

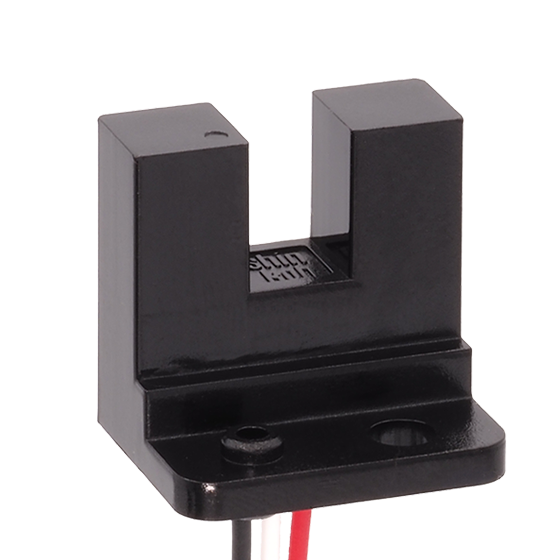

KI5510
|
5mm | 0.5mm | High (PIC w/o Shutter) | LED limiting resistor, Open collector, Dustproof, Splash proof | |
|
|
KI5511
|
5mm | 0.5mm | Low (PIC w/o Shutter) | LED limiting resistor, Open collector, Dustproof, Splash proof | |
|
KI5530
|
5mm | 0.5mm | High (PIC w/o Shutter) | Open collector, Small, Secure Locking | |
|
|
KI5531
|
5mm | 0.5mm | Low (PIC w/o Shutter) | Open collector, Small, Secure Locking | |
|
|
KI5540
|
5mm | 0.5mm | High (PIC w/o Shutter) | Vcc=12V, Open collector, Small, Secure Locking | |
|
|
KI5541
|
5mm | 0.5mm | Low (PIC w/o Shutter) | Vcc=12V, Open collector, Small, Secure Locking | |
|

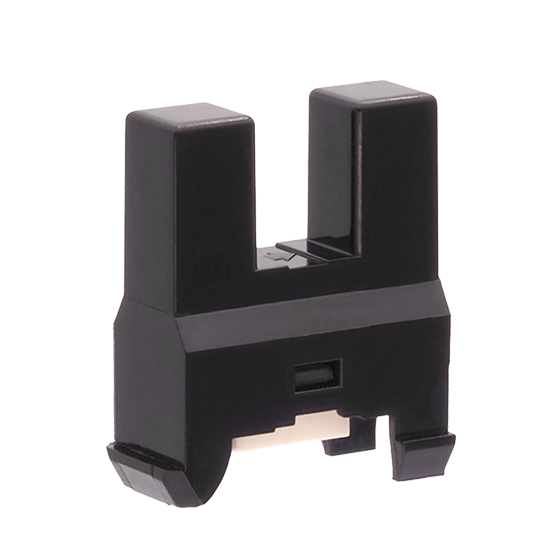

KI5770
|
5mm | 0.5mm | High (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Dustproof | |
|
|
KI5771
|
5mm | 0.5mm | Low (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Dustproof | |
|
KI5774
|
5mm | 0.5mm | Ptr | Visible light cut, Dustproof | |
|

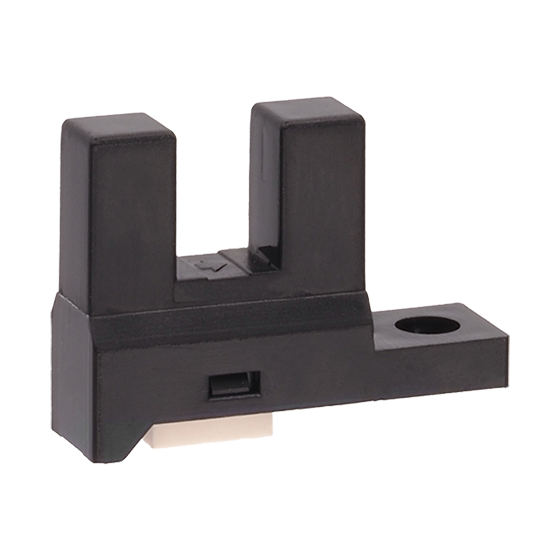

KI5780
|
5mm | 0.5mm | High (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Dustproof | |
|
|
KI5781
|
5mm | 0.5mm | Low (PIC w/o Shutter) | Visible light cut, LED limiting resistor, Dustproof | |
|
KI5784
|
5mm | 0.5mm | Ptr | Visible light cut, Dustproof |
